Shipbuilding >> Painting and Other Coatings

Painting Operations

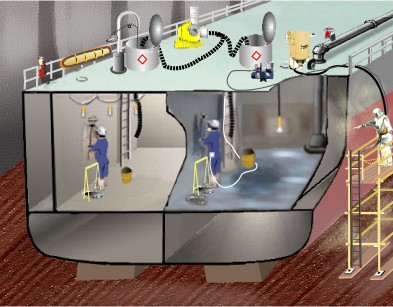

Figure 1: Illustrates the variety of painting and coating operations during shipbuilding

Paints and other preservative coatings may contain toxic and flammable materials such as hydrocarbon solvents (e.g., Toluene and Methyl Ethyl Ketone [MEK]), epoxy resins, and anti-fouling paints. Surface coating applications may release large quantities of these materials into the air, causing possible fire and explosion hazards as well as toxic inhalation and skin absorption hazards.

Note: Confined space entry is one of the leading hazards associated with barge cleaning. Review the Shipbuilding: Confined/Enclosed Spaces and Other Dangerous Atmospheres and Hot Work Operations chapters for information on how to protect workers from this hazard.

Coating applications may expose workers to the following hazards:

Note: Confined space entry is one of the leading hazards associated with barge cleaning. Review the Ship Repair: Confined/Enclosed Spaces and Other Dangerous Atmospheres chapter for information on how to protect workers from this hazard.

Figure 1: Storage locker for proper storage of flammable paints and thinners

Potential Hazard

Fire and explosion hazards associated with paint and coating applications depend upon the flashpoint and volatility of the substance. Lower flashpoint liquids (less than 80º F) present greater hazards and require additional controls.

Figure 2: Warning sign - No Smoking, No Hot Work

Requirements and Example Solutions

The following control requirements and hazard solutions have been separated into two categories:

  1. Liquids/substances with flashpoints above 80º F.
  2. Liquids/substances with flashpoints below 80º F.
Figure 3: Paint mixing in an outside well ventilated area

Liquids/substances with flashpoints 80º F and above

  • Hot work must not be performed in the space or adjacent spaces during painting operations. [29 CFR 1915.36(a)(1) and 29 CFR 1915 Subpart P]
  • Rags soaked with solvents must be kept in covered metal containers. [29 CFR 1915.36(a)(3) and 29 CFR 1915.81(a)(5)]
  • Figure 4: Shipyard Competent Person testing for flammability
    Paints, thinners, and solvents must be kept in fire-resistant covered containers when not in use. [29 CFR 1915.81(a)(5)]
  • Smoking and open flames must be prohibited in the area. [29 CFR 1915.36(a)(1)]
  • Arcing and sparking equipment and tools must not be used. [29 CFR 1915.36(a)(1)]
  • Equipment that may generate static electricity (e.g., ventilation systems) must be grounded/bonded. [29 CFR 1915.35(a)(4)]
  • Only explosion-proof lights must be used. [29 CFR 1915.36(a)(4)]
  • Adequate ventilation must be maintained in storage, mixing, and transfer areas. [29 CFR 1915.36(a)(2)]
  • Frequent tests by a Shipboard Competent Person (SCP) must be required during painting operations to determine if air concentrations are below 10 percent of the lower exposure limit (LEL). [29 CFR 1915.36(a)(2)]
  • Suitable fire fighting equipment must be immediately available. [29 CFR 1915.36(a)(6)]
  • Figure 5: 55-gallon drum of flammable liquid in a leak-protected pan
    30-gallon drums and containers of flammable or toxic liquids must be placed in an area where they will not be subject to physical damage. [29 CFR 1915.173(d)]
  • 55-gallon drums containing flammable or toxic liquids must be surrounded by dikes or pans. [29 CFR 1915.173(e)]
  • Power and lighting cables must be inspected by a person competent to evaluate electrical hazards and ensure there are no connections within 50 feet of the painting operations (not necessarily the Shipyard Competent Person). [29 CFR 1915.36(a)(5)]
  • Spills of solvents should be cleaned up immediately.
Figure 6: Air movers for ventilating paint area

Liquids/substances with flashpoints below 80º F

When paints and tank coatings are dissolved in highly volatile, flammable solvents with flash points below 80º F, the following additional precautions must be taken:

  • Sufficient exhaust ventilation must be provided to keep the concentration of solvent vapors below 10 percent of the LEL. Frequent tests must be made by a shipyard competent person (SCP) to determine concentrations. [29 CFR 1915.35(b)(1)]
  • If the concentration exceeds 10 percent of the LEL, work must be stopped until the concentration falls below 10 percent of the LEL. [29 CFR 1915.35(b)(2)]
  • Figure 7: Shipyard Competent Person testing other area for flammability
    Ventilation must be continued after painting is complete until the space or compartment is "gas-free." [29 CFR 1915.35(b)(3)]
  • Exhaust ducts must discharge clear of working areas and away from sources of possible ignition. [29 CFR 1915.35(b)(4)]
  • Periodic tests must be conducted by the Shipyard Competent Person to ensure the exhausted vapors are not accumulating in other areas within or around the vessel or dry dock. [29 CFR 1915.35(b)(4)]
  • Explosion-proof motors, fan blades, and portable air ducts must be non-ferrous. [29 CFR 1915.35(b)(5)]
  • All footwear worn during painting operations must be non-sparking. [29 CFR 1915.35(b)(9)]
  • PPE must not produce static electrical sparks. [29 CFR 1915.35(b)(9)]
  • Figure 8: Improper practice: ventilation equipment for flammable painting
    No matches, lighted cigarettes, cigars, pipes, cigarette lighters, or other ferrous articles are allowed into the work area. [29 CFR 1915.35(b)(10)]
  • All solvent drums taken into the compartment where painting operations are being performed must be placed on nonferrous surfaces and grounded to the vessel. [29 CFR 1915.35(b)(11)]
  • All metallic parts of paint spraying equipment must be electrically grounded and the assembly grounded to the vessel. [29 CFR 1915.35(b)(12)]
Figure 9: Worker protected from toxic paint vapors by air-line respirator

Potential Hazard

Toxic vapors and mists from paints and paint solvents may present significant health hazards due to inhalation during painting operations. These vapors may accumulate in low-lying areas as well as enclosed spaces where they displace the air and lower the oxygen content.

Figure 10: SCP doing air monitoring during spray painting

Requirements and Example Solutions

  • A hazard assessment must be conducted to determine the proper selection of respirators. [29 CFR 1915.152(b)]
    • The components of epoxy, isocyanate, anti-fouling, and coal tar pitch paints may be particularly dangerous to workers' health and call for special precautions.
    • Many of these paints cause respiratory and skin sensitization and allergic reactions, which may be life threatening.
    • Respirators must be used in accordance with the PPE section 29 CFR 1915.154. [29 CFR 1910.134]
Figure 11: Worker using full body suit with airline respirator in enclosed space

When paints are mixed with toxic vehicles or when solvents are sprayed the following respiratory protection procedures are required:

  • Continual Air Monitoring
    • The Shipyard competent person (SCP), Certified marine chemist (CMC), or Certified industrial hygienist (CIH) may require continual monitoring to determine that vapor/mist air concentrations are within the permissible exposure limit (PELs) and below immediately dangerous to life or health (IDLH) levels while workers are in the area.
    • If the concentrations are above appropriate levels, additional administrative controls (e.g., exposure time limits), engineering controls (e.g., ventilation), or PPE (e.g., respirators) are required.
Figure 12: Worker protected by filter respirator during spray painting hull
  • Use of Airline Respirators
    • Airline respirators are required in confined spaces to protect employees who are continuously exposed to toxic materials during coating operations. [29 CFR 1915.35(a)(1)(i)]
    • Airline respirators are required in enclosed spaces to protect workers when mechanical ventilation is not provided, [29 CFR 1915.35(a)(1)(ii)] or when the flash point of the paint or solvent is less than 80º F. [29 CFR 1915.35(b)(13)]
  • Use of Air Purifying Respirators (Filter Respirators)
    • In tanks and compartments where mechanical ventilation is provided, employees continuously exposed must be protected by filter respirators, at a minimum; in accordance with Subpart I (29 CFR 1915.154). [29 CFR 1915.35(a)(1)(ii)]
    • In large and well-ventilated areas, employees exposed to spray painting must be protected by filter respirators in accordance with Subpart I (29 CFR 1915.154). [29 CFR 1915.35(a)(1)(iii)]
    • All employees doing exterior spray painting with material containing solvents with flash points below 80º F must be protected by suitable filter cartridge-type respirators, at a minimum; in accordance with Subpart I (29 CFR 1915.154). [29 CFR 1915.35(b)(14)]
    • Employees entering compartments where spray painting is being done with paints containing solvents with a flash point below 80º F, for a limited time, must be protected with filter cartridge type respirators, at a minimum; in accordance with Subpart I (29 CFR 1915.154). [29 CFR 1915.35(b)(13)]

When coatings are applied by non-spray methods, the following respiratory protection procedures are required:

  • Air Purifying Respirators (Filter Respirators).
  • when brush application of paints containing toxic solvents is done in confined spaces or in other areas where lack of ventilation creates a hazard, filter respirators at a minimum in accordance with Subpart I (29 CFR 1915.154). [29 CFR 1915.35(a)(2)]

Additional Resources:

Figure 13: Worker using proper PPE for spray painting

Potential Hazards

Employees working with paint or paint solvents containing toxic or corrosive materials are at risk if skin or eye contact occurs. Precautions must be taken to prevent such contact in order to avoid:

  • Organ damage through chemical absorption through the skin or eyes;
  • Chemical burns, irritation, sensitization, and allergic reaction to skin or eyes; and
  • Ingestion of food contaminated with toxic materials due to poor hygiene.
Figure 14: Washing facilities for clean up

Requirements and Example Solutions

  • A hazard assessment for each job and condition must be conducted to determine proper selection of PPE. [29 CFR 1915.152(b)] This assessment should include:
    • The nature of the hazardous materials involved;
    • Anticipated concentrations of the materials;
    • How the materials will be used;
    • Performance of the PPE; and
    • Actions workers will perform.
  • All body parts, including face, eyes, head, and hands must be protected from highly volatile paints. [29 CFR 1915.35(b)(9)]
  • Spills or other releases of painting materials should be cleaned up as soon as possible.
  • Washing facilities (such as facilities for quick-drenching of the eyes and body) must be available in case employees have skin contact with paint and paint solvents that may be absorbed through the skin. [29 CFR 1915.88(e) and 29 CFR 1915.151(c)]
  • Workers must be trained about potential hazards involved with the materials they work with, as well as precautions; in accordance with Hazard Communication Standard. [29 CFR 1915.1200]
Figure 15: Workers receiving training on potential hazards and solutions

Additional Information

  • Hazard Communication Guidelines for Compliance. OSHA Publication 3111, (2000).
  • Hazard Communication. OSHA Safety and Health Topics Page.
Figure 16: Eye wash station
  • Fixed or portable eye wash stations/safety showers should meet ANSI Z358.1-1998: Emergency Eye Wash and Shower Equipment.
Figure 17: Worker on vertical ladder

Potential Hazards

Workers performing painting operations are exposed to slippery conditions and tripping hazards. Workers are at risk of:

  • Slipping off oily and greasy ladders;
  • Slipping and falling on oily decks;
  • Tripping over equipment, hoses, and vessel structures; and
  • Slipping on freshly painted surfaces.
Figure 18: Improper Practice: Tripping hazards due to hoses, vessel structures and wet conditions

Requirements and Example Solutions

Figure 19: Enclosed space illuminated with temporary lighting
Figure 20: Improper Practice: Unguarded deck holes and openings

Potential Hazards

Fall hazards are a leading cause of shipyard fatalities.

Shipyard employees are often required to work in dangerous environments that may include fall hazards. Accidents involving elevation equipment such as ladders, scaffolds, and aerial lifts are often serious, even fatal.

Deck Openings and Edges

  • Falls from deck openings;
  • Falls into open holes.
Figure 21: Open manway covered with grate and cover


  • Falls from ladders;
  • Falls from scaffolds;
  • Falls from aerial lifts.

Requirements and Example Solutions

Guarding of Deck Openings and Edges

  • Openings and deck edges must be guarded. [29 CFR 1915.73]
  • Flush manholes and other small openings must be guarded after opening. [29 CFR 1915.73(b)]
  • During the installation of guards on large openings and deck edges, fall protection (harness with lanyard) must be used. [29 CFR 1915.73(d)]
  • Openings must be guarded or planked when floor plates or gratings (e.g. bilges, engine rooms, pump rooms, machinery spaces) are removed. [29 CFR 1915.73(f)]
Figure 22: Scaffold edges protected by guardrails

Fall Protection for Scaffold Work

  • Guardrails or other appropriate fall protection must be used when working on scaffolds 5 feet above surfaces. [29 CFR 1915.71(j)]
  • Fall protection must be used during the installation of guards on scaffolds. [29 CFR 1915.73(d)]
  • Personal fall protection (such as harness and lanyard) must be worn when working from aerial lifts. [29 CFR 1910.67(c)(2)(v)]
  • Defective ladders must not be used and must be removed immediately. [29 CFR 1915.72(a)(1)]
  • Portable ladders must be secured and extend 3 feet above the landing surface. [29 CFR 1915.72(a)(3)]
  • For additional information on Ladders, see the Shipyard Ladders module.
  • Maritime Labor/Industry recommends that personal fall protection, including lanyards and harnesses, be used and secured during installation of guardrails, as well as scaffold erection and dismantling.
Figure 23: High pressure nozzle guarded to prevent contact with nozzle

Potential Hazards

The use of high-pressure paint equipment may expose the operator, as well as other workers, to the following hazards:

  • Contact with high-pressure painting equipment;
  • Contact by uncontrolled high-pressure hoses; and
  • Contact with air leaks from high-pressure equipment.

Injuries associated with these hazards include:

  • Loss of body parts (e.g., fingers, hands, etc.)
  • Lacerations
  • Burns
  • Loss of sight
Figure 24: Inspection of high pressure spray equipment

Requirements and Example Solutions

  • Access to the area should be controlled.
  • Avoid contact with high-pressure nozzle.
  • Maintain high-pressure spray equipment according to the manufacturer's requirements.
  • Inspect hoses and connections before use.
  • Use paint pots with appropriate pressure regulators/ratings.
Figure 25: Full body suit can increase potential heat related illnesses for painter

Potential Hazards

Environmental conditions such as temperature, humidity, and air movement within the work area may cause hazards. A combination of PPE use, heat-producing equipment, work activity, and environmental conditions can cause temperature-related illnesses. Heat-related illnesses include:

  • Heat Stress
  • Heat Stroke
  • Heat Cramps
  • Dehydration

Cold-related illnesses include

  • Hypothermia
  • Frostbite

Additional Resources

Figure 26: Air-supplied hood reduces heat related problems when wearing full body PPE

Example Solutions

Maritime Labor/Industry recommends the following for heat-related illnesses:

  • Plenty of fluids
  • Frequent breaks
  • Ice vest
  • Shaded or cooled break areas
  • Ventilation
  • Awareness training
Figure 27: Workers being trained to recognize and avoid temperature related hazards

Maritime labor/industry recommends the following for cold-related illnesses:

  • Appropriate insulation (PPE)
  • Warming areas for breaks
  • Awareness training
Figure 28: Faulty electrical breaker box

Potential Hazards

Employees who work with or around electrical equipment have an increased risk of getting shocked or electrocuted due to:

Figure 29: Damaged electrical cable
  • Exposed energized electrical parts;
  • Open lighting parts (such as broken bulbs, exposed conductors);
  • Damaged insulation on power cords.
Figure 30: Portable electrical tools must be double insulated or properly grounded

Requirements and Example Solutions

Figure 32: Inspection shows welding equipment in water. Must be corrected before use
  • All electrical tools or equipment should undergo a visual inspection before use.
  • All portable electric hand tools and temporary lighting systems should use Ground Fault Circuit Interrupters (GFCI).
  • Electrical tools and equipment should correspond with the requirements of the job.
  • Electrical equipment and tools should be used with proper circuit protection for the voltage and amperage used.
  • Only qualified electricians should attempt repair of electrical tools and equipment.
  • A Ground Assurance Program should be in place for all electrical tools and equipment used including:
    • Records of tools inspected and repaired;
    • Records of electrical boxes inspected and repaired;
    • Records of electrical extension cords inspected and repaired; and
    • Recall of records of the above.
  • The requirements of the Ground Assurance Program should be performed on a regular basis.
Figure 33: Improper Practice: Ventilation hose obstructing exit

Potential Hazards

When working in confined or enclosed spaces, workers may become trapped and unable to exit due to:

  • Improperly located equipment blocking egress.
  • Ventilation ducts and hoses running through an opening blocking egress.
Figure 34: Improper Practice: Ventilation hoses blocking exit from opening

Requirements and Example Solutions

  • When employees work in confined spaces with limited access, the access must not be blocked or impeded by ventilation ducts, hoses, or other equipment. [29 CFR 1915.76(b)(2)]
  • More than one means of access must be provided where practical. [29 CFR 1915.76(b)(1)]
  • Additional openings should be provided for ducts, hoses, and other equipment.
Figure 35: Special ventilation hose (flat), to avoid blocking exit Figure 36: Two access holes for equipment or access
