Thermoforming Machine » Safety Tour - Slide 47
Use the "Move Left" and "Move Right" links below to navigate around the machine.
Featured areas in the image are numbered and described in the "Featured Areas" section located below the image.
Featured areas in the image are numbered and described in the "Featured Areas" section located below the image.
Featured Areas
(1)

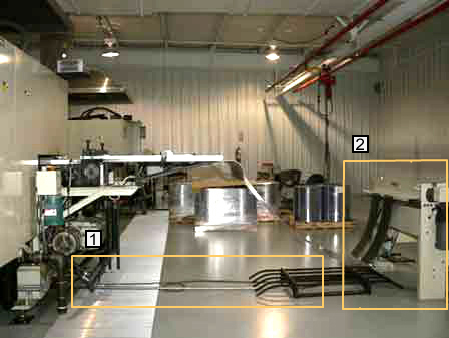

These are the air and electric lines. [Photo description: Highlighted area includes air and electric lines that run along the floor between the nip roller area and the sheet intake area.] View close-up
(2)
This is the Unwind Stand (located at the feed end of this device). [Photo description: The highlighted area includes a white metal stand.] View close-up
Close-up image of air and electrical lines.
These are the air and electric lines.
[Photo description: Photo includes air and electric lines that run along the floor between the nip roller area and the sheet intake area.]
Close-up image of the unwind stand.
This is the Unwind Stand (located at the feed end of this device)
[Photo description: The photo area includes an end view of the white metal Unwind Stand.]
