Thermoforming Machine » Safety Tour - Slide 35

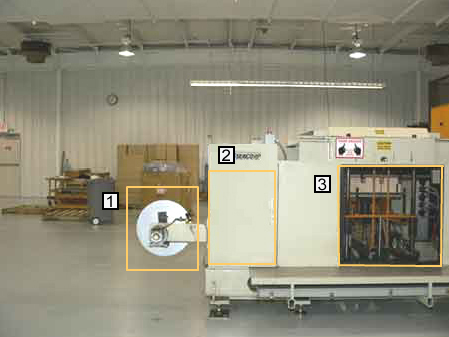

Featured areas in the image are numbered and described in the "Featured Areas" section located below the image.
This is the scrap rewinder. After the parts are removed from the plastic sheet, the remaining skeletal trim scrap is often rewound and collected for baling or grinding material offline. The worker will manually feed the scrap into the rewinder and remove the bale of material when the rewinder is full. [Photo description: The highlighted area includes the end of the machine with a round spool with two prongs on one end where the trim scrap is rewound.] View close-up
This door serves as a guard to prevent worker access to the Servo drive, pulley and belt. [Photo description: The highlighted area includes a small white door at the end of the machine.] View close-up
The stacker is a bottom tool that pushes the parts upward through the plastic web. The tooling for the stacker is usually made from wood or aluminum and the operation can be automatically performed by a robotic process. [Photo description: The highlighted area resides inside the machine but is visible through an opening in the side. Moving parts can be seen which push parts up out the top.] View close-up
