This is the version of 29 CFR 1910.269 that was in effect on April 11, 2014. As of July 10, 2014, this version of 29 CFR 1910.269 is no longer in effect. In accordance with OSHA's temporary enforcement policy dated June 20, 2014, compliance with this version of 29 CFR 1910.269 will be accepted as compliance with the current versions of 29 CFR 1910.269 and 29 CFR 1926, Subpart V through October 31, 2014.
| • Part Number: | 1910 |
| • Part Title: | Occupational Safety and Health Standards |
| • Subpart: | R |
| • Subpart Title: | Special Industries |
| • Standard Number: | 1910.269 App A |
| • Title: | Flow Charts. |
Appendix A to §1910.269 -- Flow Charts
This appendix presents information, in the form of flow charts, that illustrates the scope and application of 1910.269. This appendix addresses the interface between 1910.269 and Subpart S of this Part (Electrical), between 1910.269 and 1910.146 of this Part (Permit-required confined spaces), and between 1910.269 and 1910.147 of this Part (The control of hazardous energy (lockout/tagout)). These flow charts provide guidance for employers trying to implement the requirements of 1910.269 in combination with other General Industry Standards contained in Part 1910.
Appendix A-1 to §1910.269 -- Application of §1910.269 and Subpart S of this Part to Electrical Installations.

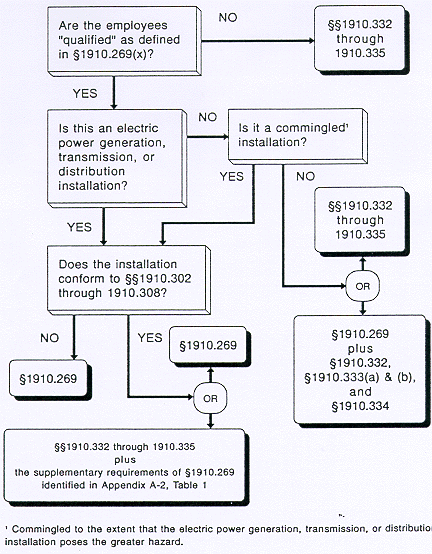

Appendix A-2 to §1910.269 -- Application of §1910.269 and Subpart S of this Part to Electrical Safety-Related Work Practices.
Table 1. -- Electrical Safety-Related Work Practices in §1910.269

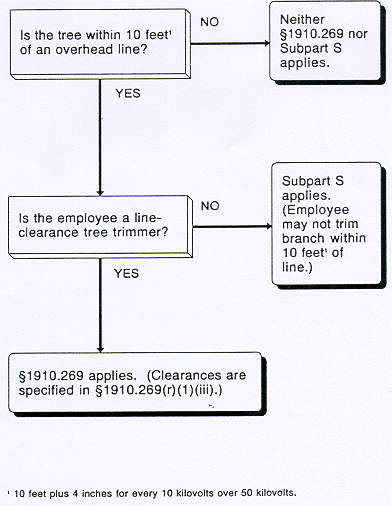

Appendix A-3 to §1910.269 -- Application of §1910.269 and SubpartS of this Part to Tree-Trimming Operations.
Appendix A-4 to §1910.269 -- Application of §§1910.147, 1910.269 and 1910.333 to Hazardous Energy Control Procedures (Lockout/Tagout).

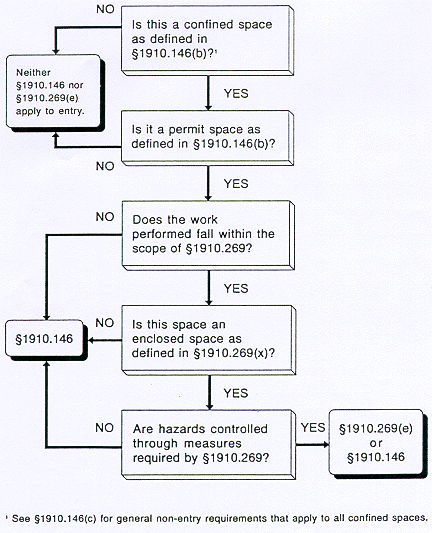

Appendix A-5 to §1910.269 -- Application of §§1910.146 and 1910.269 to Permit-Required Confined Spaces.
