• Part Number:
    1926
  • Part Number Title:
    Safety and Health Regulations for Construction
  • Subpart:
    1926 Subpart R
  • Subpart Title:
    Steel Erection
  • Standard Number:
  • Title:
    Illustrations of Bridging Terminus Points: Non-mandatory Guidelines for Complying with §§ 1926.757(a)(10) and § 1926.757(c)(5).
  • GPO Source:
    e-CFR

Appendix C to Subpart R of Part 1926 -- Illustrations of Bridging Terminus Points: Non-Mandatory

Guidelines for Complying with §§1926.757(a)(10) and 1926.757(c)(5)

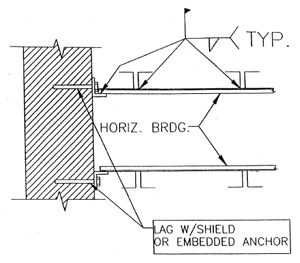

Horizontal bridging terminus at wall

HORIZONTAL BRIDGING
TERMINUS AT WALL

Horizontal bridging terminus at wall

HORIZONTAL BRIDGING
TERMINUS AT WALL

Horizontal bridging terminus at panel wall

HORIZONTAL BRIDGING
TERMINUS AT PANEL WALL

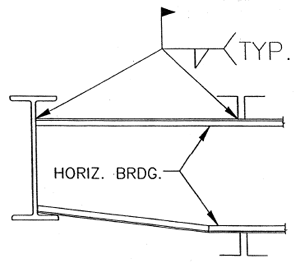

Horizontal bridging terminus at structural shape

HORIZONTAL BRIDGING
TERMINUS AT
SRTUCTURAL SHAPE

Horizontal bridging terminus at structural shape with optional x-bridging

HORIZONTAL BRIDGING
TERMINUS AT STRUCTURAL
SHAPE WITH OPTIONAL
"X-BRIDGING"

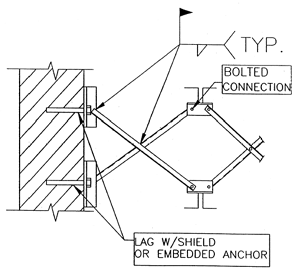

Bolted diagonal bridging terminus at wall

BOLTED DIAGONAL BRIDGING
TERMINUS AT WALL

Bolted diagonal bridging terminus at wall

BOLTED DIAGONAL BRIDGING
TERMINUS AT WALL

Bolted diagonal bridging terminus at wall

BOLTED DIAGONAL BRIDGING
TERMINUS AT WALL

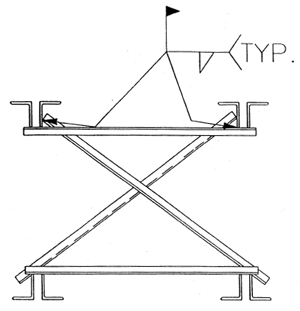

Joists pair bridging terminus point

JOISTS PAIR BRIDGING
TERMINUS POINT

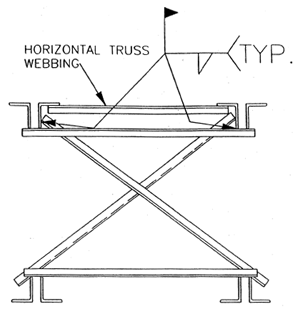

Joists pair bridging terminus point with horizontal truss

JOISTS PAIR BRIDGING
TERMINUS POINT
W/HORIZ. TRUSS

Horizontal bridging terminus point secured by temp. guy cables

HORIZONTAL BRIDGING
TERMINUS POINT
SECURED BY TEMP.
GUY CABLES

Diagonal bridging terminus point secured by temp. guy cables

DIAGONAL BRIDGING
TERMINUS POINT
SECURED BY TEMP.
GUY CABLES

[66 FR 5274, Jan. 18, 2001]
