Local Exhaust Ventilation Diagrams » Central Vacuum System

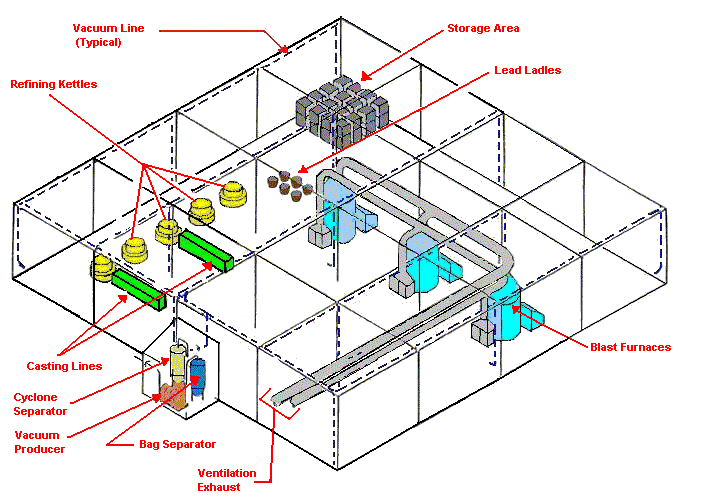

Diagram of a typical central vacuum system highlighting each feature

Notes

  • Locate exhaust outside
  • Overdesign for lead transport
  • Provide ample hose and attachments at each access point
  • Provide access point close to areas of high dust concentration
